API Documentation

WEBSERVERS

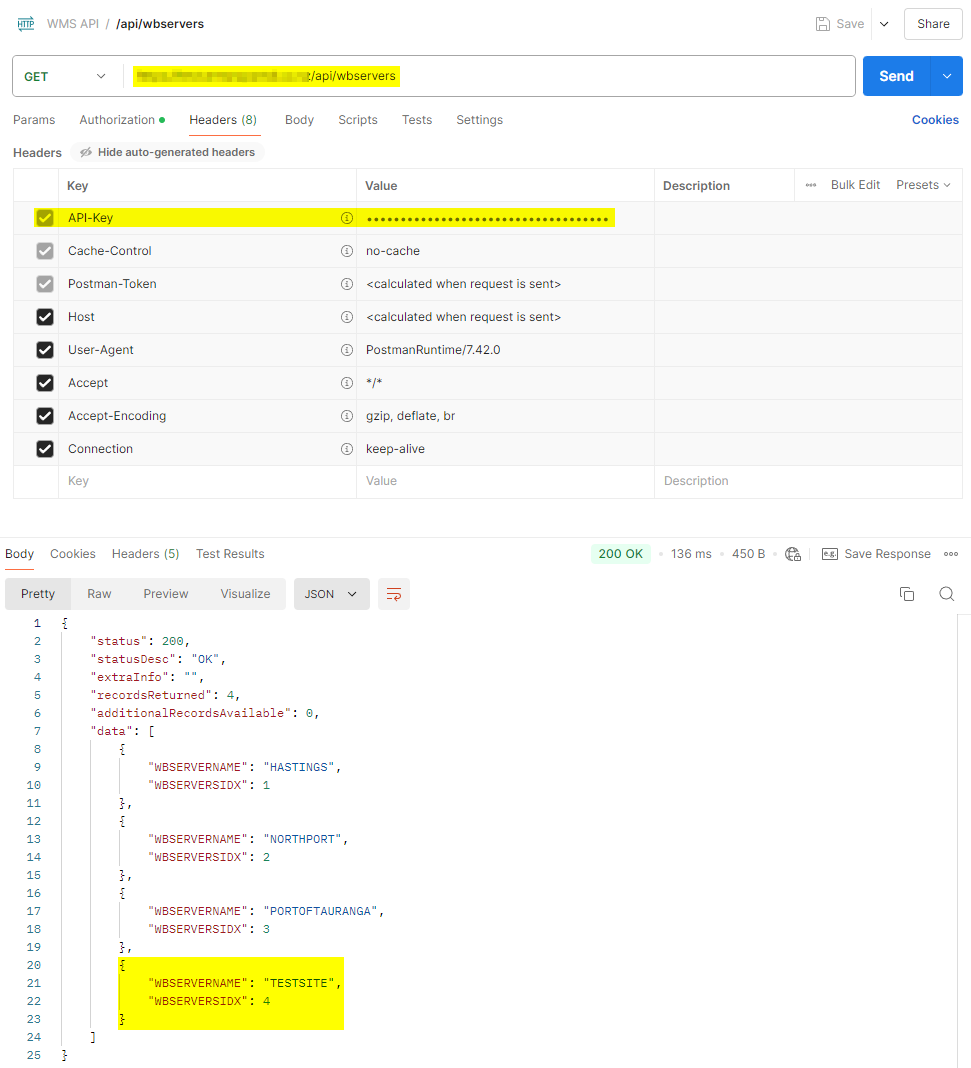

GET /api/wbservers

Description:

Retrieve a list of available web servers and their online status.

Required Headers:

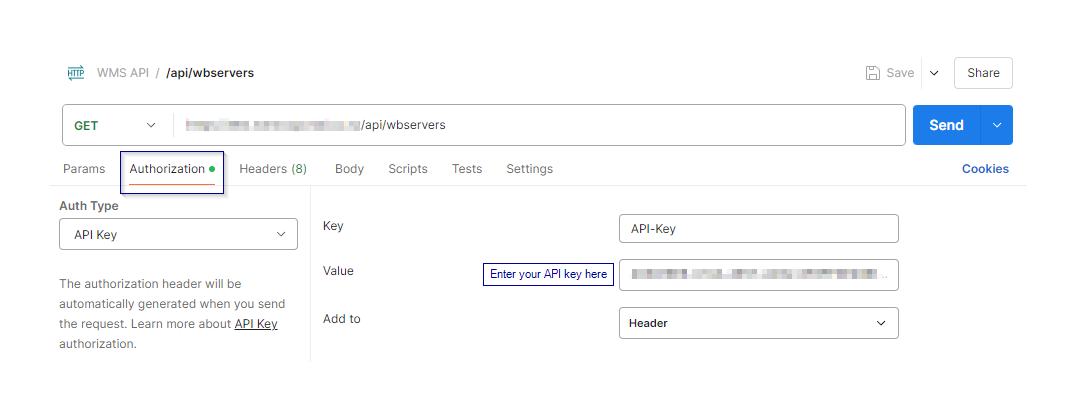

• API-Key: Your API key.

Response:

SITECODES

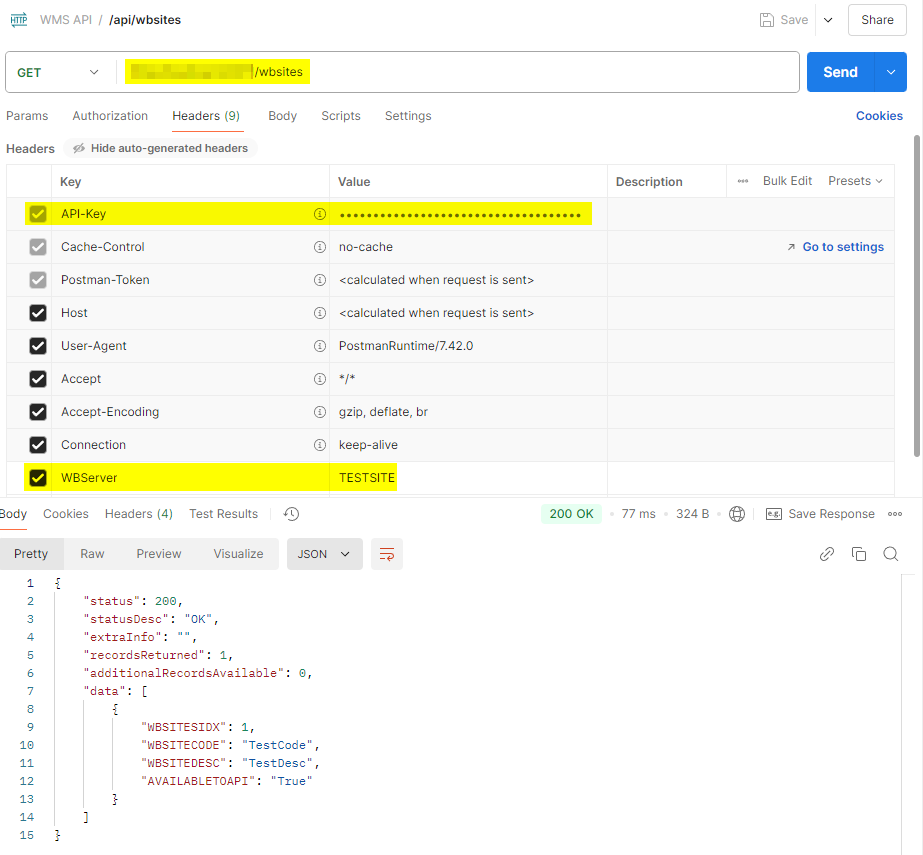

GET /api/wbsites

Description:

Retrieve a list of sitecodes.

Required Headers:

• API-Key: Your API key.
• WBServer: Use TESTSITE for testing purposes.

Response:

CUSTOMERS

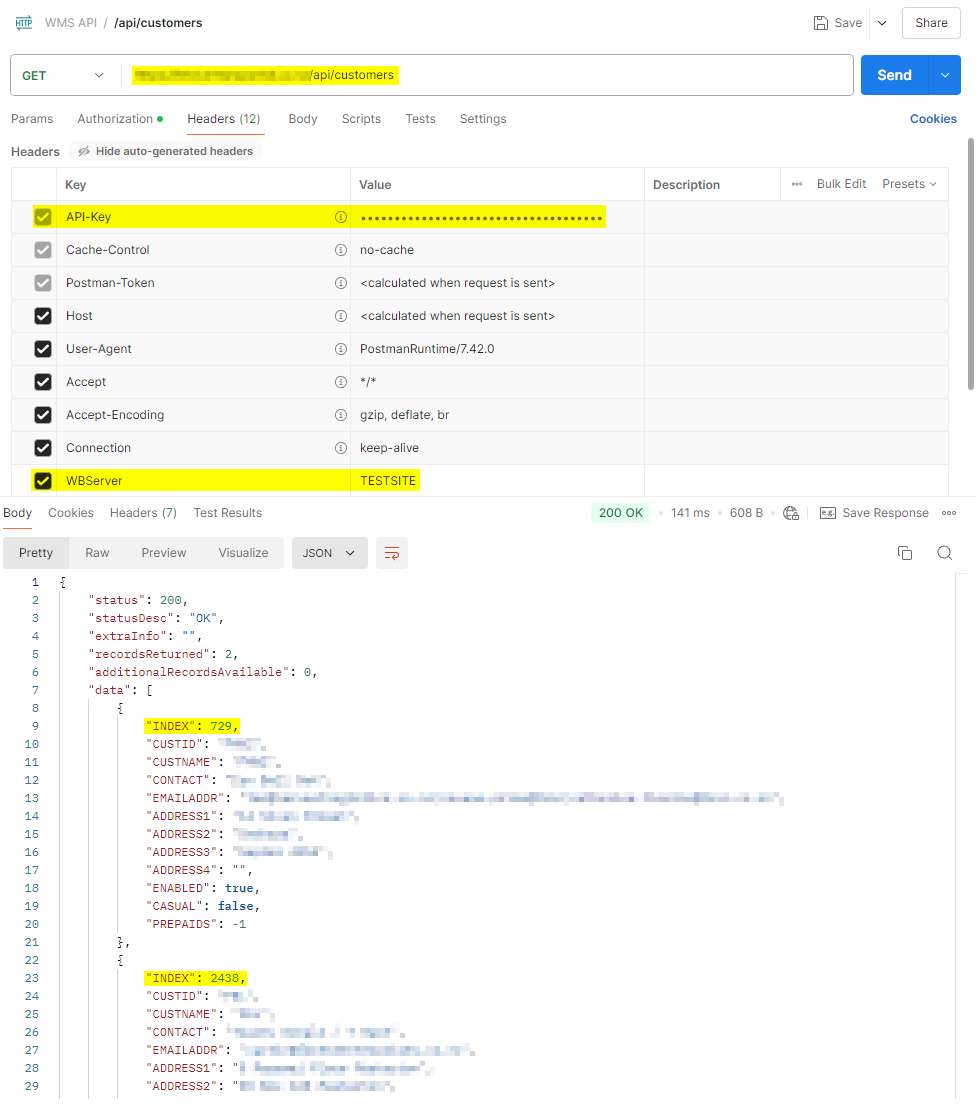

GET /api/customers

Description:

Return a list of customers associated with your account.

The maximum number of records returned is limited to 1000.

If more than 1000 records are available, the field additionalRecordsAvailable indicates how many more there are.

Required Headers:

• API-Key: Your API key.
• WBServer: Use TESTSITE for testing purposes.

Optional Headers:

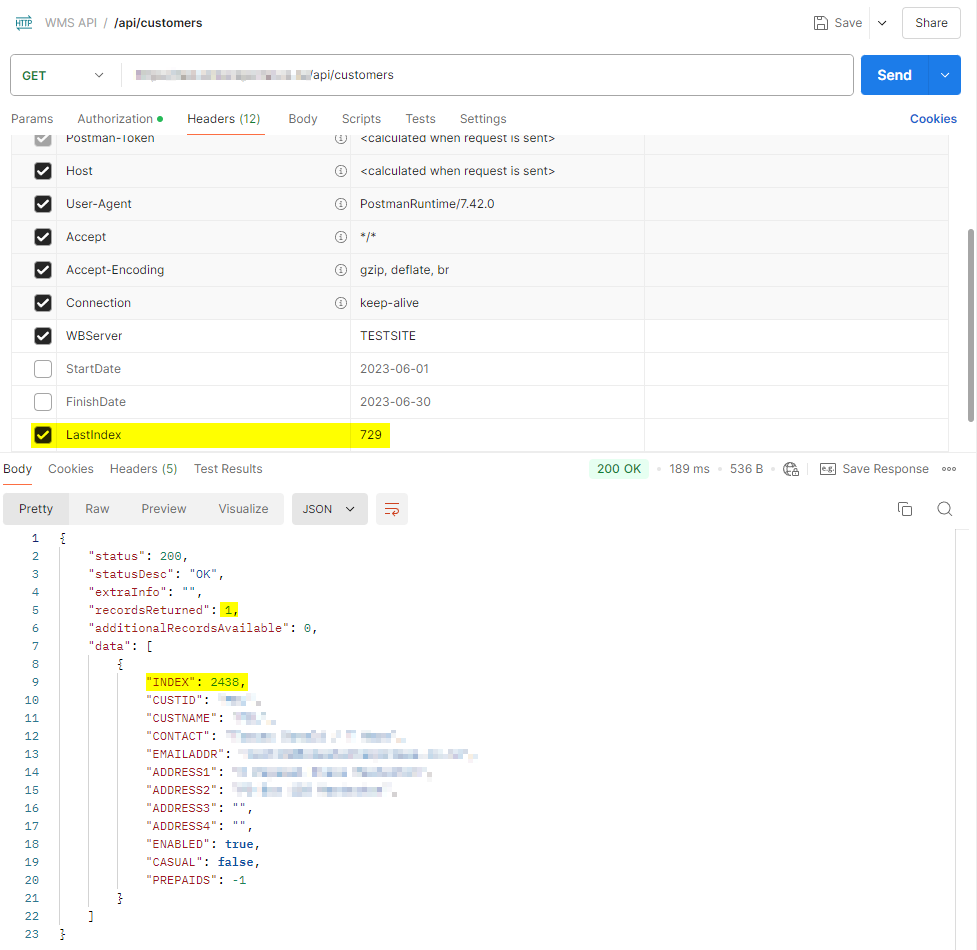

• LastIndex: In order to return additional records, specify the index value of the last record which was returned.

Response:

CARRIERS

GET /api/carriers

Description:

Return a list of available carriers.

The maximum number of records returned is limited to 1000.

If more than 1000 records are available, the field additionalRecordsAvailable indicates how many more there are.

Required Headers:

• API-Key: Your API key.
• WBServer: Use TESTSITE for testing purposes.

Optional Headers:

• LastIndex: In order to return additional records, specify the index value of the last record which was returned.

Response:

TRANSACTIONS

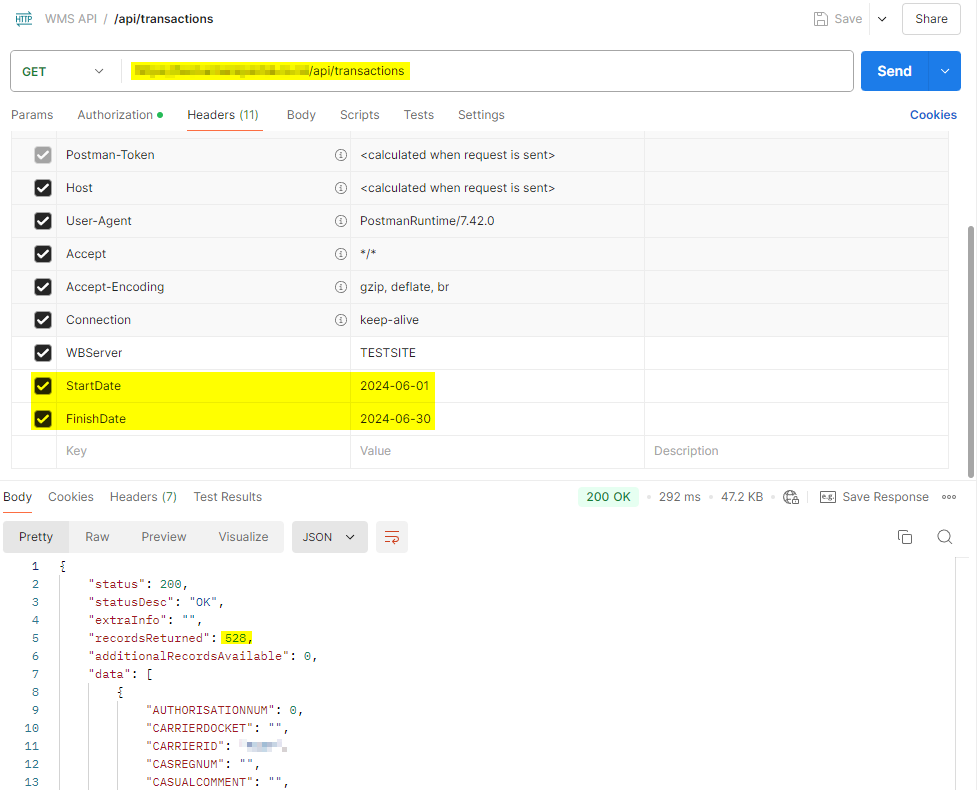

GET /api/transactions

Description:

Return a filtered list of transactions.

Not specifying a value for CustomerID and CarrierID will return all transactions associated with your user account within the specified data range. The relevant customers and carriers will be determined by WMS office staff during the creation of your unique API account and key.

The LinkedToKey field is useful to find a linked trailer record. A positive value is the Index for the corresponding trailer transaction. If this field contains -1 for a truck record, then there is no linked trailer.

The maximum number of records returned is limited to 1000.

If more than 1000 records are available, the field additionalRecordsAvailable indicates how many more there are.

If a value is specified for LastIndex then the first transaction returned will be the one following that value.

Required Headers:

• API-Key: Your API key.
• WBServer: Use TESTSITE for testing purposes.
• StartDate: Provide the start date in YYYY-MM-DD format (e.g., 2024-12-25).
• FinishDate: Provide the end date in YYYY-MM-DD format (e.g., 2024-12-25).

Optional Headers:

• LastIndex: In order to return additional records, specify the index value of the last record which was returned.

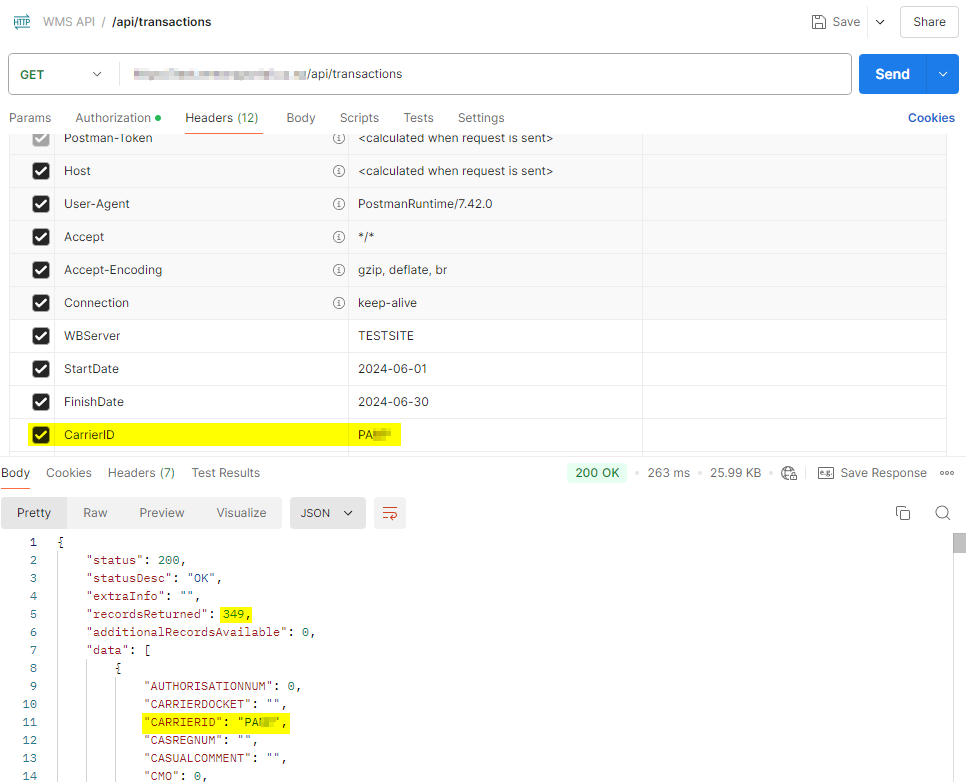

• CarrierID: Provide the CarrierID if known

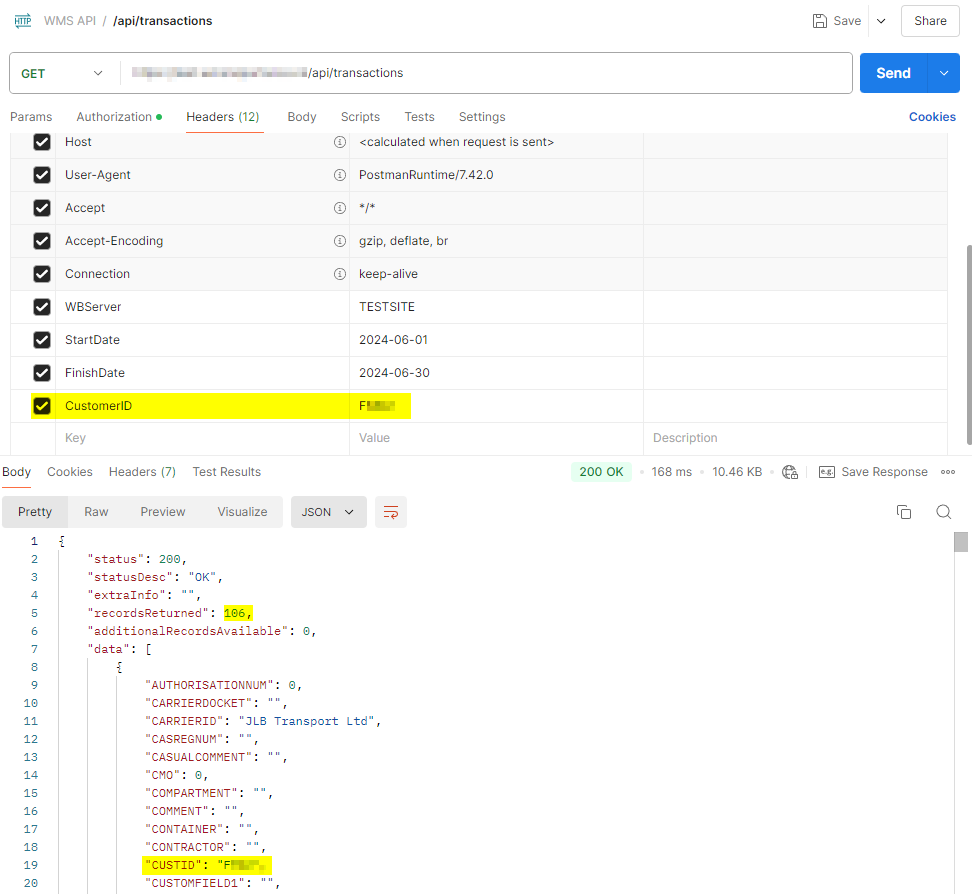

• CustomerID: Provide a CustomerID if known

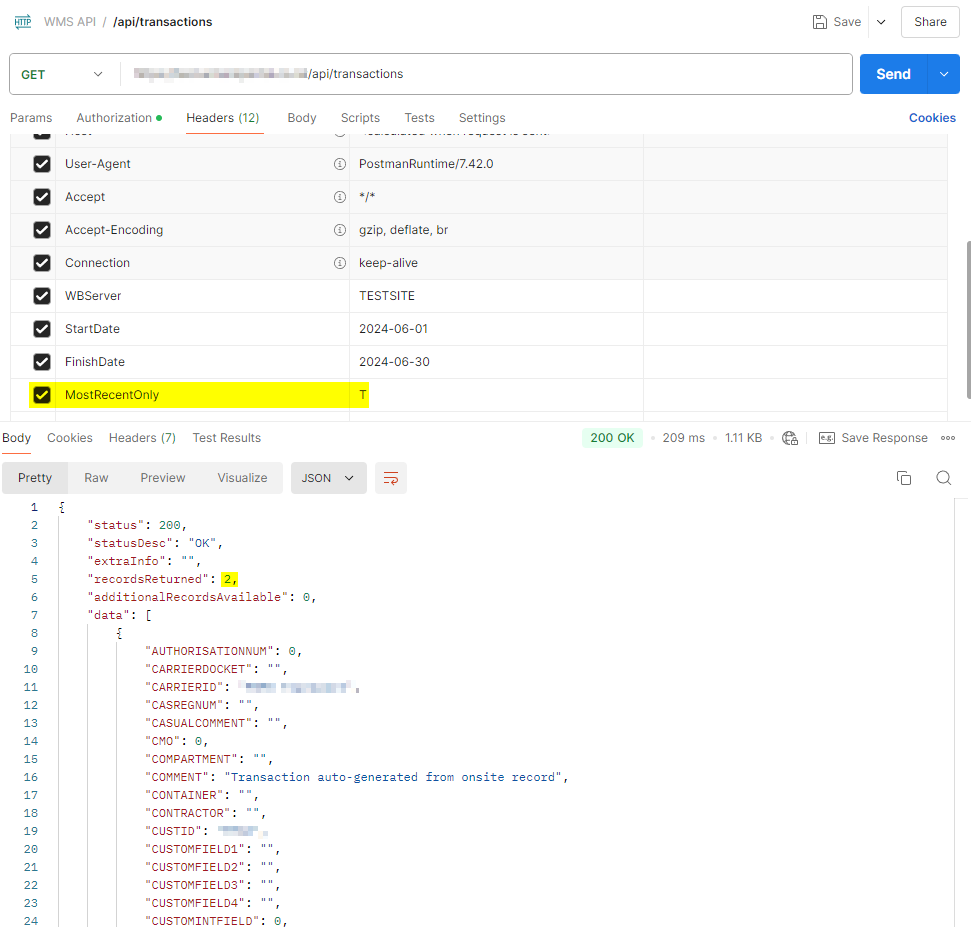

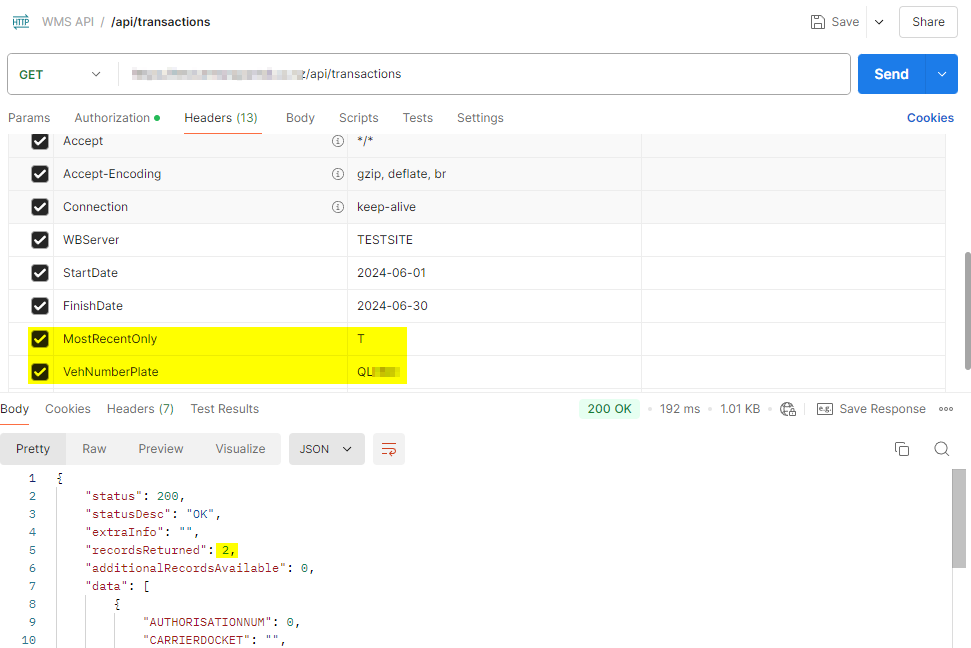

• MostRecentOnly: Set to "T" to retrieve the most recent two transactions. This is useful when used in conjunction with VehNumberPlate to obtain the most recent transaction for a particular vehicle. If the most recent transaction for a specified vehicle was a split load, then the other transaction returned will be for the trailer. If it was a combined load, then the other transaction will be the previous transaction for the truck.
• VehNumberPlate: Pass a number plate to search for a specific vehicle.
• PreadviceType: Pass a provider name to filter transactions by preadvice type.

Response:

VEHICLES

GET /api/vehicles

Description:

The GET Vehicle method has two functions:

• Searching for a single vehicle by numberplate via the VehNumberPlate header.
• Retrieving a list of all vehicles via the GetAll header.

Access to vehicles are determined by the Customers and Carriers associated with your unique API account.

If more than 1000 records are available, the field additionalRecordsAvailable in the response indicates how many more there are.

Additional records can be accessed using the LastIndex header to request the next batch of records. Simply set this value to the index of the last record returned.

Required Headers:

• API-Key: Your API key.
• WBServer: Use TESTSITE for testing purposes.
• VehNumberPlate: The number plate of a single vehicle
• GetAll: Set the parameter of this header to 'Y' to retrive a list of all vehicles. This cannot be used with VehNumberPlate.

Optional Headers

• Sitecode: Must only be used with VehNumberPlate. Pass a SiteCode if known. Omitting the SiteCode header will fetch data from a global Vehicles table. Sitecodes can be found using the Sitecodes endpoint.
• LastIndex: In order to return additional records, pass the index value of the last record which was returned.

Responses:

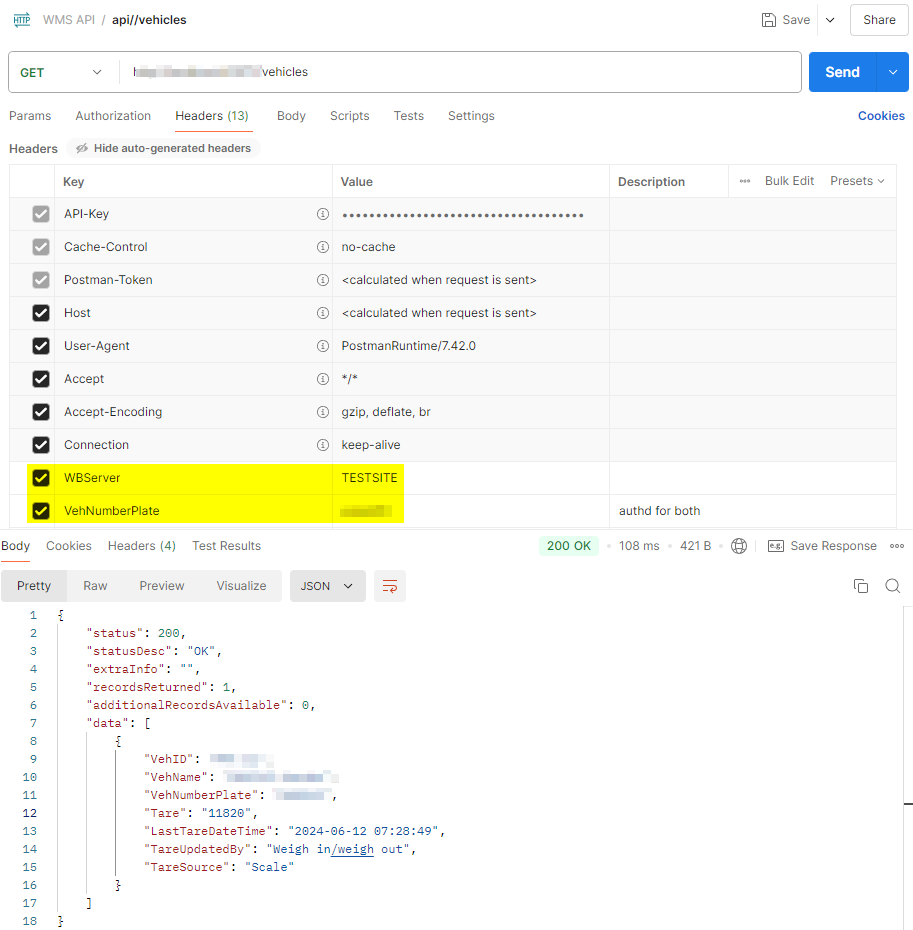

Searching a vehicle by plate:

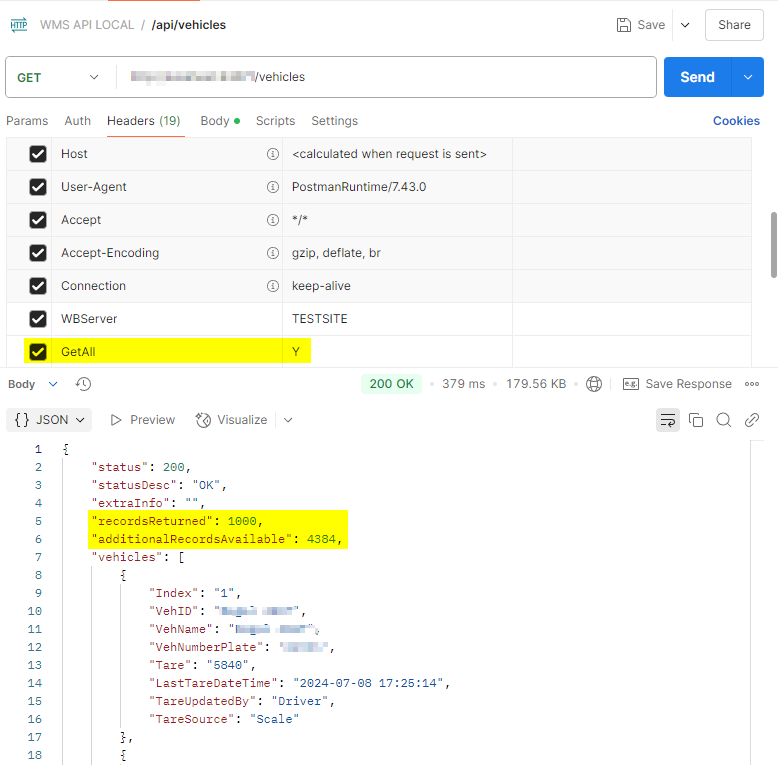

Getting all vehicles:

(The next batch can be retrieved by passing the index of the last item (27513), with the LastIndex header)

POST /api/vehicles

Description:

Update vehicle tares for one or more vehicles by number plate.

Tare Update data is sent to the API via the request body.

The VehicleTares array must be present and contain JSON objects representing each vehicle to be updated.

For vehicles without an attached trailer, omit the TrailerPlate and TrailerTare fields from the JSON object.

Access to any given truck or trailer is determined by the Customers and Carriers associated with your unique API account.

Required Headers:

• API-Key: Your API key.
• WBServer: Use TESTSITE for testing purposes.

Optional Headers:

• Sitecode: Pass a SiteCode. Omitting this header will save data to the global Vehicles table. Sitecodes can be found using the Sitecodes endpoint.

JSON Schema:

Key	Data Type	Description
TruckPlate	String	The number plate of a truck
TruckTare	Integer	Tare value to the nearest kilogram
TrailerPlate	String	(Optional) Number plate of the attached trailer
TrailerTare	Integer	(Optional) Tare value of the attached trailer to the nearest kilogram
TareDateTime	String	Tare Date and Time in ISO8601 format (e.g., "2024-10-23T13:30:58")

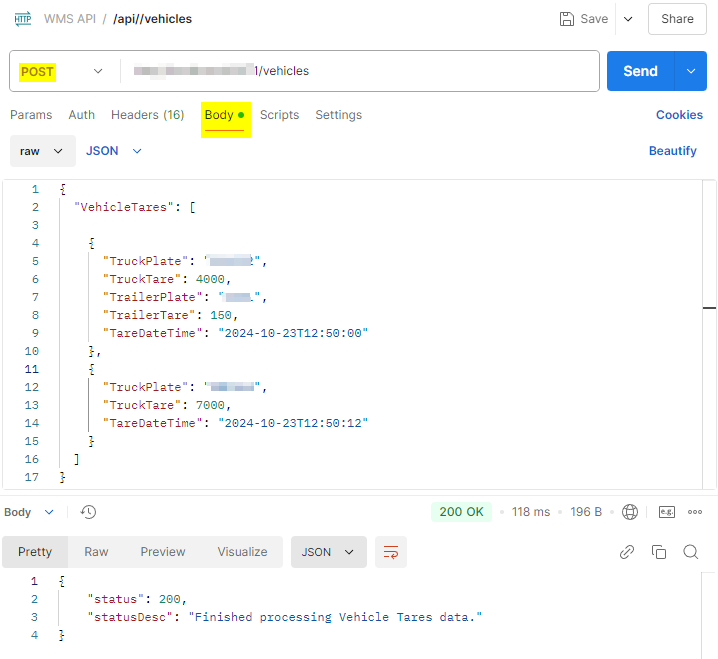

Request Body:

Tare Update data for vehicle(s) must be passed in the request body using the following structure:

(Note: The second entry represents a truck with no attached trailer).

Response:

Dockets

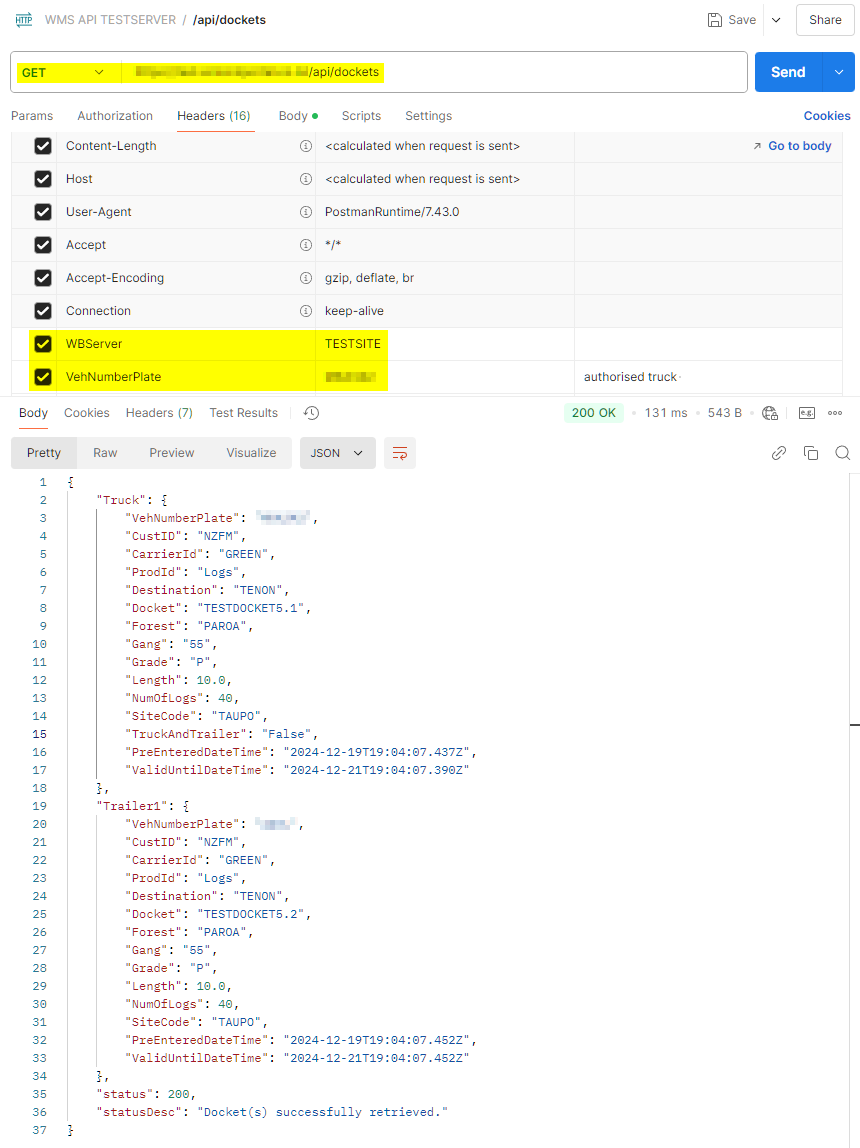

GET /api/dockets

Description:

Check if a vehicle has any existing pre-entered dockets.

If a vehicle has an attached trailer, the pre-entered trailer data will be automatically fetched.

Access to any given vehicle is determined by the Customers and Carriers which are associated with your unique API account.

Required Headers:

• API-Key: Your API key.
• WBServer: Use TESTSITE for testing purposes.
• VehNumberPlate: The numberplate of the vehicle you are searching for.

Response:

POST /api/dockets

Description:

Allows pre-entering dockets for vehicles before they reach the weighbridge.

Docket data is sent to the API via the request body.

The PreEnteredDockets array must be present and contain JSON objects consisting of either a single truck, or a truck with one or two attached trailers.

Access to any given truck or trailer is determined by the Customers and Carriers associated with your unique API account.

Required Headers:

• API-Key: Your API key.
• WBServer: Use TESTSITE for testing purposes.

JSON Schema:

All fields are mandatory unless specified

Key	Data Type	Description
TruckAndTrailer	Boolean	Include for Truck objects only. Set to true if the new record is for a truck and trailer combined in a single docket.
CustId	String	The customer ID associated with the truck/trailer
CarrierId	String	The carrier ID associated with the truck/trailer
ProdId	String	Product ID
VehNumberPlate	String	The number plate of the truck/trailer
Destination	String	The vehicle's destination
Docket	String	Bush docket number. Can also be used as a general docket field for non-log loads
Forest	String	Forest logs were sourced from
Gang	String	The felling gang
Grade	String	Grade of the logs
Length	Double	Length of the logs
NumOfLogs	Integer	Number of logs
SiteCode	String	Sitecode of the weighbridge the vehicle will weigh at
ValidFromDateTime	String	Starting Date and Time for validity period of docket in ISO8601 format (e.g., "2024-10-23T13:30:58"). Defaults to current date and time if no value is provided
ValidUntilDateTime	String	Expiration Date and Time for docket in ISO8601 format (e.g., "2024-10-23T13:30:58"). Defaults to 48hrs from current date and time if no value is provided
WeighsValidFor	Integer	Number of weighs the docket is valid for

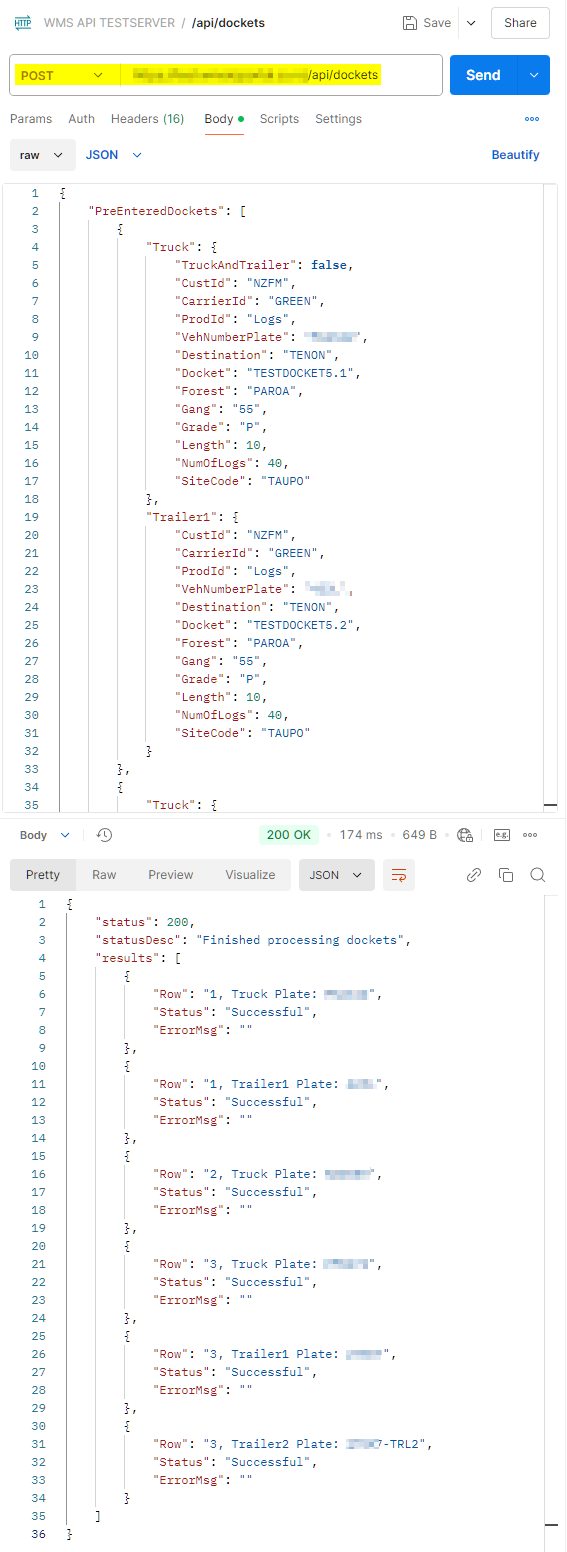

Request Body Example:

The first entry represents a single truck with no trailer.

The second entry represents a truck and trailer combined in a single docket.

The third entry represents a truck and trailer with seperate dockets.

The fourth entry represents a truck and two trailers with seperate dockets.

Pre-entered data for vehicle(s) must be passed in the request body using the following structure:

Response:

A results object will be returned for each docket:

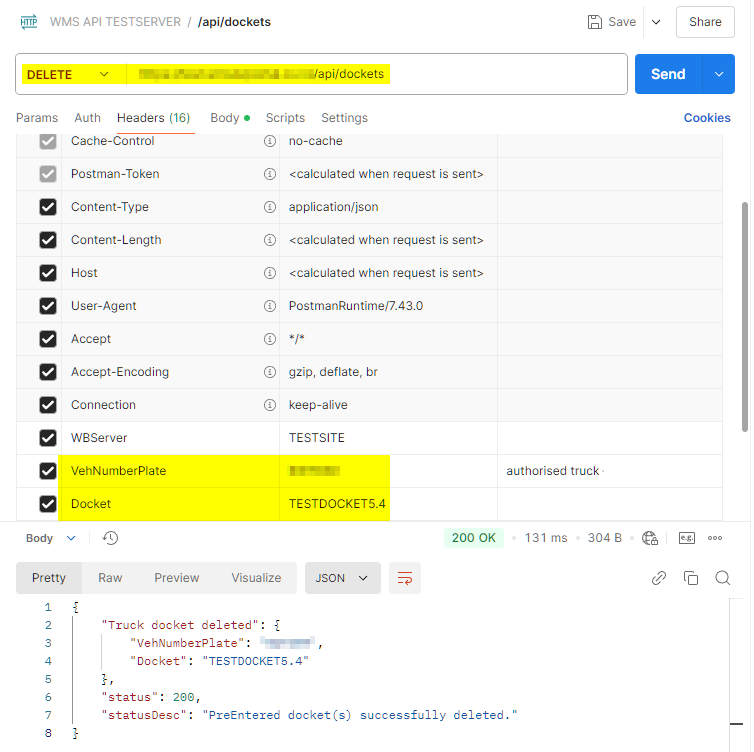

DELETE /api/dockets

Description:

Delete an existing pre-entered docket by passing the Docket number and VehNumberPlate.

Non-WMS users can only delete dockets which were created using their own API account.

Required Headers:

• API-Key: Your API key.
• WBServer: Use TESTSITE for testing purposes.
• VehNumberPlate: The vehicle number plate for the Pre-entered record.
• Docket: The docket number for the Pre-entered record.

Response:

ONSITE

GET /api/onsite

Description:

Check if a vehicle is currently onsite by passing its VehNumberPlate or use the GetAll header to receive a list of all vehicles currently onsite.

If the vehicle currently has an attached trailer, an additional Trailer object will be included in the response.

Required Headers:

• API-Key: Your API key.
• WBServer: The server you wish to pull data from. See /wbservers for more info.
• VehNumberPlate: The number plate of the vehicle you are checking for.
• GetAll: Pass 'Y' to receive all vehicles instead. This cannot be used with the VehNumberPlate header.

Response:
